縦書き例:はがき印刷             <TOP>


縦書き表示例。ついでにはがきを印刷してみます。フォントの変更も可能です。

初期状態はMS ゴシックに設定されています。フォント変更時の付いたフォントおよびプロポーショナルフォントは選択しないでください。

フォーム設計




宛先の郵便番号はMS ゴシック固定です。宛先郵便番号、宛名、差出人名前および電話番号の部分は均等割付をしています。
スタンプ(50円)はSTAMP.BMPをロードしていますが、ない場合は50円切手と表示されます。



文字サイズはプログラム上で指定していますので無効です。

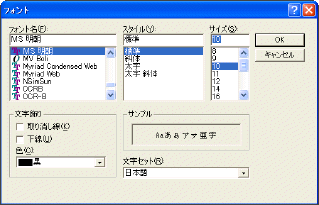

if choosefont(ffont, 0, 0, 0) then の場合

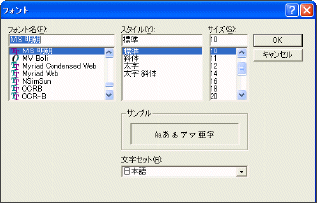

if choosefont(ffont, rgbcolor, -1, 0) then の場合

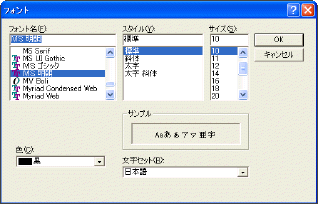

if choosefont(ffont, rgbcolor, -1, -1) then の場合

'================================================================
'= 縦書き一例・はがき印刷
'================================================================
#include "Windows.bi"

Var Shared MAINFORM As Object
Var Shared PRT As Object
Var Shared BITMAP As Object

Var Shared F_NAME$ As String     'フォント名
Var Shared F_POINT As single     '文字ポイント
Var Shared F_SPACE As single     '文字間隔(通常はフォントサイズ)
Var Shared F_FRAME As single     '均等割付時の文字枠長
Var Shared FFONT As FONT         'フォント構造体
Var Shared LM As Integer         '文字列長さ
Var Shared PRM As PRINTPARAM
Var Shared ATENA$(3) As String
Var Shared SEnd$(4) As String
Var Shared TXT$ As String
Var Shared XPOS As Integer
Var Shared YPOS As Integer
Var Shared CARDW As Integer
Var Shared CARDH As Integer
Var Shared LX As Integer
Var Shared LY As Integer

def fnWD(X) = F_POINT/72*254     '文字ポイントを1/10o(MAPMODE=2)に合わす

PRINTERObject PRT
BITMAPObject BITMAP

Declare Sub MAINFORM_START edecl ()
Declare Sub POSTCARD_DRAW edecl ()
Declare Sub ATENA_DRAW edecl ()
Declare Sub TATEGAKI_DRAW edecl ()
Declare Sub YOKOGAKI_DRAW edecl ()
Declare Sub MNUFONTSEL_ON edecl ()
Declare Sub MNUEXIT_ON edecl ()
Declare Sub MAINFORM_QUERYCLOSE edecl (CANCEL%,ByVal MODE%)

'================================================================
'=
'================================================================
Sub MAINFORM_START()
    If PREVINSTANCE Then
        RES = MESSAGEBOX(GETWINDOWTEXT, "このアプリケーションは実行中です!", 0, 0) : End
    End If

    ATENA$(0) = "佐々木 小次郎"
    ATENA$(1) = "064-0923"
    ATENA$(2) = "北海道札幌市中央区南12条西34丁目5-6"
    ATENA$(3) = "巌流マンション803"
    SEnd$(0) = "阪神 虎之助"
    SEnd$(1) = "654-0103"
    SEnd$(2) = "兵庫県神戸市須磨区黒山台5丁目67-8"
    SEnd$(3) = "タイガーハイツ603"
    SEnd$(4) = "電話・FAX078-789-0123"

    SETWINDOWTEXT "縦書例:はがき印刷"
    CARDW = 1000
    CARDH = 1480

    SETMAPMODE 2
    SETWINDOWSIZE CARDW+60, CARDH+170
    MOVEWINDOW 50, 50
    SHOWWINDOW -1

    F_NAME$ = "MS ゴシック"
    FFONT.FFNAME = F_NAME$
    POSTCARD_DRAW
    ATENA_DRAW
End Sub

'================================================================
'=
'================================================================
Sub POSTCARD_DRAW()
    on error goto *ER_TRAP

    LX = 20
    LY = 20
    line(LX, LY)-(LX+CARDW, LY+CARDH),,15,bf
    For X = 435 To 575 step 70
        line(X+LX, 120+LY)-(X+60+LX, 200+LY),,5,b
        line(X+LX+2, 120+LY+2)-(X+60+LX-2, 200+LY-2),,5,b
    Next
    For X = 650 To 860 step 70
        line(X+LX, 120+LY)-(X+60+LX, 200+LY),,5,b
    Next
    line(635+LX, 160+LY)-(650+LX, 160+LY),,5

    BITMAP.LOADFILE "STAMP.BMP"
    STRETCHBITMAP BITMAP, 90+LX, 110+LY, 180, 250
    BITMAP.DELETEObject
    Exit Sub

*ER_TRAP 'STAMP.BMPがない場合
    line(90+LX, 110+LY)-(270+LX, 360+LY),preset,8,bf
    SETFONTNAME "MS ゴシック"
    SETFONTSIZE 12
    SETFONTBOLD -1
    symbol(135+LX, 180+LY),"50円",1,1,15
    symbol(135+LX, 230+LY),"切手",1,1,15
    resume Next
End Sub

'================================================================
'= F_FRAME:均等割付の長さ
'================================================================
Sub ATENA_DRAW()

    ' 郵便番号(3桁部)
    F_POINT = 12
    TXT$ = akcnv$(Left$(ATENA$(1),instr(ATENA$(1),"-") - 1))
    LM = KLen(TXT$)
    F_FRAME = 180
    F_SPACE = fnWD(F_POINT) + ((F_FRAME - LM * fnWD(F_POINT)) / (LM-1))
    XPOS = 450
    YPOS = 145
    YOKOGAKI_DRAW

    ' 郵便番号(4桁部)
    TXT$ = akcnv$(Mid$(ATENA$(1),instr(ATENA$(1),"-") + 1))
    LM = KLen(TXT$)
    F_FRAME = 240
    F_SPACE = fnWD(F_POINT) + ((F_FRAME - LM * fnWD(F_POINT)) / (LM-1))
    XPOS = 665
    YPOS = 145
    YOKOGAKI_DRAW

    ' 住所1
    F_POINT = 12
    TXT$ = akcnv$(ATENA$(2))
    LM = KLen(TXT$)
    F_SPACE = fnWD(F_POINT)
    XPOS = 880
    YPOS = 270
    TATEGAKI_DRAW

    ' 住所2
    TXT$ = akcnv$(ATENA$(3))
    LM = KLen(TXT$)
    F_SPACE = fnWD(F_POINT)
    XPOS = 800
    YPOS = 320
    TATEGAKI_DRAW

    ' 名前 & 敬称
    TXT$ = akcnv$(ATENA$(0))+" 様"
    If LM < 15 Then F_POINT = 16 Else F_POINT = 14
    F_FRAME = 840
    F_SPACE = fnWD(F_POINT) + ((F_FRAME - LM * fnWD(F_POINT)) / (LM-1))
    XPOS = 620
    YPOS = 350
    TATEGAKI_DRAW

    ' 差出人郵便番号
    F_POINT = 8
    TXT$ = "〒" & akcnv$(SEnd$(1))
    LM = KLen(TXT$)
    F_SPACE = fnWD(F_POINT)
    XPOS = 280
    YPOS = 650
    TATEGAKI_DRAW

    ' 住所1
    F_POINT = 9
    TXT$ = akcnv$(SEnd$(2))
    LM = KLen(TXT$)
    F_SPACE = fnWD(F_POINT)
    XPOS = 240
    YPOS = 700
    TATEGAKI_DRAW

    ' 住所2
    TXT$ = akcnv$(SEnd$(3))
    LM = KLen(TXT$)
    F_SPACE = fnWD(F_POINT)
    XPOS = 200
    YPOS = 750
    TATEGAKI_DRAW

    ' 名前
    TXT$ = akcnv$(SEnd$(0))
    LM = KLen(TXT$)
    F_POINT = 11
    F_FRAME = 500
    F_SPACE = fnWD(F_POINT) + ((F_FRAME - LM * fnWD(F_POINT)) / (LM-1))
    XPOS = 160
    YPOS = 820
    TATEGAKI_DRAW

    ' 電話・FAX
    TXT$ = akcnv$(SEnd$(4))
    LM = KLen(TXT$)
    F_POINT = 8
    F_FRAME = 480
    F_SPACE = fnWD(F_POINT) + ((F_FRAME - LM * fnWD(F_POINT)) / (LM-1))
    XPOS = 110
    YPOS = 840
    TATEGAKI_DRAW
End Sub

'================================================================
'= 縦書き表示
'================================================================
Sub TATEGAKI_DRAW()
    If LM = 0 Then Exit Sub
    FFONT.FFNAME = "@"+FFONT.FFNAME
    SETFONT FFONT
    SETFONTSIZE F_POINT
    For I = 1 To LM
        ZZZ$ = kMid$(TXT$, I, 1)
        If ZZZ$ = "−" Then
            ZZZ$ = "ー"
        Else If ZZZ$ = "1" Then
            ZZZ$ = "一"
        Else If ZZZ$ = "2" Then
            ZZZ$ = "二"
        Else If ZZZ$ = "3" Then
            ZZZ$ = "三"
        Else If ZZZ$ = "4" Then
            ZZZ$ = "四"
        Else If ZZZ$ = "5" Then
            ZZZ$ = "五"
        Else If ZZZ$ = "6" Then
            ZZZ$ = "六"
        Else If ZZZ$ = "7" Then
            ZZZ$ = "七"
        Else If ZZZ$ = "8" Then
            ZZZ$ = "八"
        Else If ZZZ$ = "9" Then
            ZZZ$ = "九"
        End If
        symbol(XPOS+LX, YPOS+LY), ZZZ$, 1, 1, , 3
        YPOS = YPOS + F_SPACE
    Next
    FFONT.FFNAME = Mid$(FFONT.FFNAME, 2)
End Sub

'================================================================
'= 横書き表示
'================================================================
Sub YOKOGAKI_DRAW()
    If LM = 0 Then Exit Sub
    SETFONTNAME "MS ゴシック"
    SETFONTSIZE F_POINT
    For I = 1 To LM
        ZZZ$ = kMid$(TXT$, I, 1)
        symbol(XPOS+LX, YPOS+LY), ZZZ$, 1, 1
        XPOS = XPOS + F_SPACE
    Next
End Sub

'================================================================
'= EPSON PX-V700:LX=-25/LY=-15
'================================================================
Declare Sub MNUPRINT_ON edecl ()
Sub MNUPRINT_ON()
    LX = -25 '左余白調整
    LY = -15 '上余白調整
    PRT.SETUPPRINTERMODE "SETUPPRINTER:", 11, 1 '
    If PRT.PRINTDLG(PRM) <> 0 Then
        PRT.SETMAPMODE 2
        PRT.STARTDOC "Sample"
        PRT.STARTPAGE

        PRT.ATENA_DRAW

        PRT.ENDPAGE
        PRT.ENDDOC
        PRT.CLOSEPRINTER
    End If
End Sub

'================================================================
'= フォント指定
'================================================================
Sub MNUFONTSEL_ON()
    FFONT.FFNAME = F_NAME$
    If CHOOSEFONT(FFONT,0,0,0) Then
        F_NAME$ = FFONT.FFNAME
    End If
    FFONT.FFNAME = F_NAME$
    POSTCARD_DRAW
    ATENA_DRAW
End Sub

'================================================================
'= 終了処理
'================================================================
Sub MAINFORM_QUERYCLOSE(CANCEL%,ByVal MODE%)
    CANCEL% = MESSAGEBOX(GETWINDOWTEXT, "終了しますか?", 1, 1 )
    If CANCEL% = 0 Then End
End Sub

Sub MNUEXIT_ON()
    RES = MESSAGEBOX(GETWINDOWTEXT, "終了しますか?", 1, 1 )
    If RES = 0 Then End
End Sub

'================================================================
'=
'================================================================
While 1
    WaitEvent
Wend
Stop
End
